Excavator Buckets
11-14 All-Star Excavator Bucket
To suit a 11-14 tonne Excavator
| 11-14 Tonne | |
|---|---|
| Carrier Weight | 11-14 Tonne |
| Shafts | 5 |
| Weight | 975kg |
| Hydraulic Req. | 70L/min 180 Bar |
| M³ Volume | 0.62m³ |
| Output Capability | 45-55 TPH |
| Inside Width | 1154mm |
| Opening Width | 1435mm |
Make a Product EnquiryDownload PDF Brochure

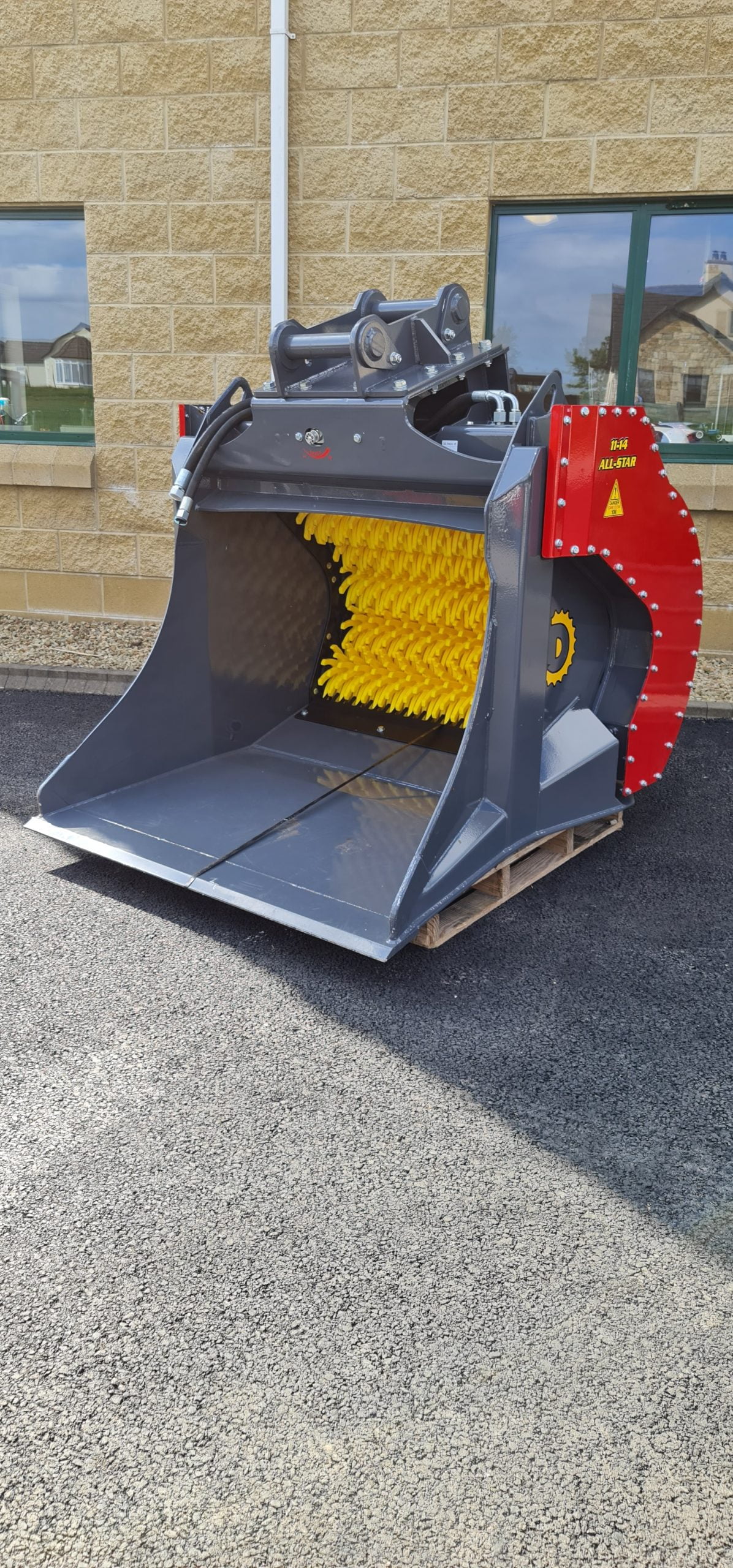

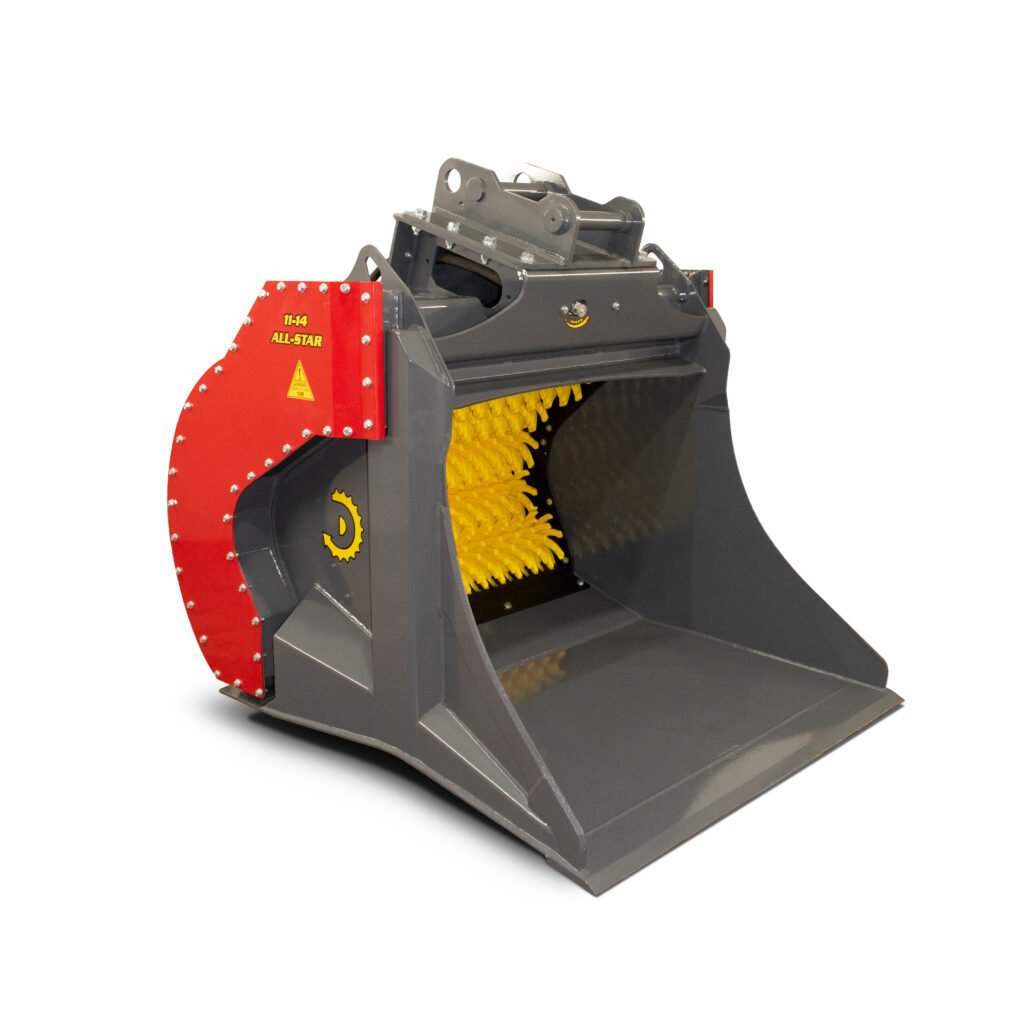

11-14 All-Star Excavator Bucket

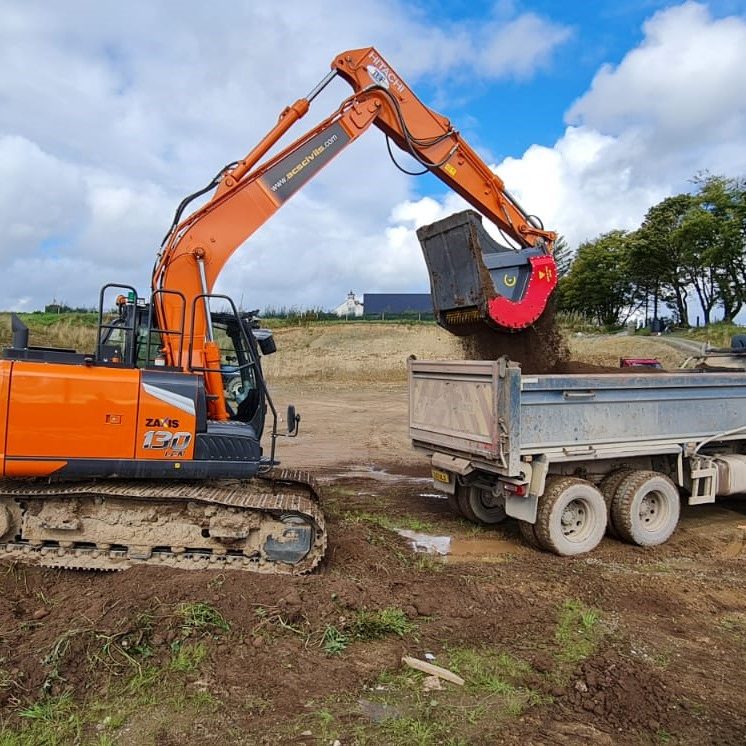

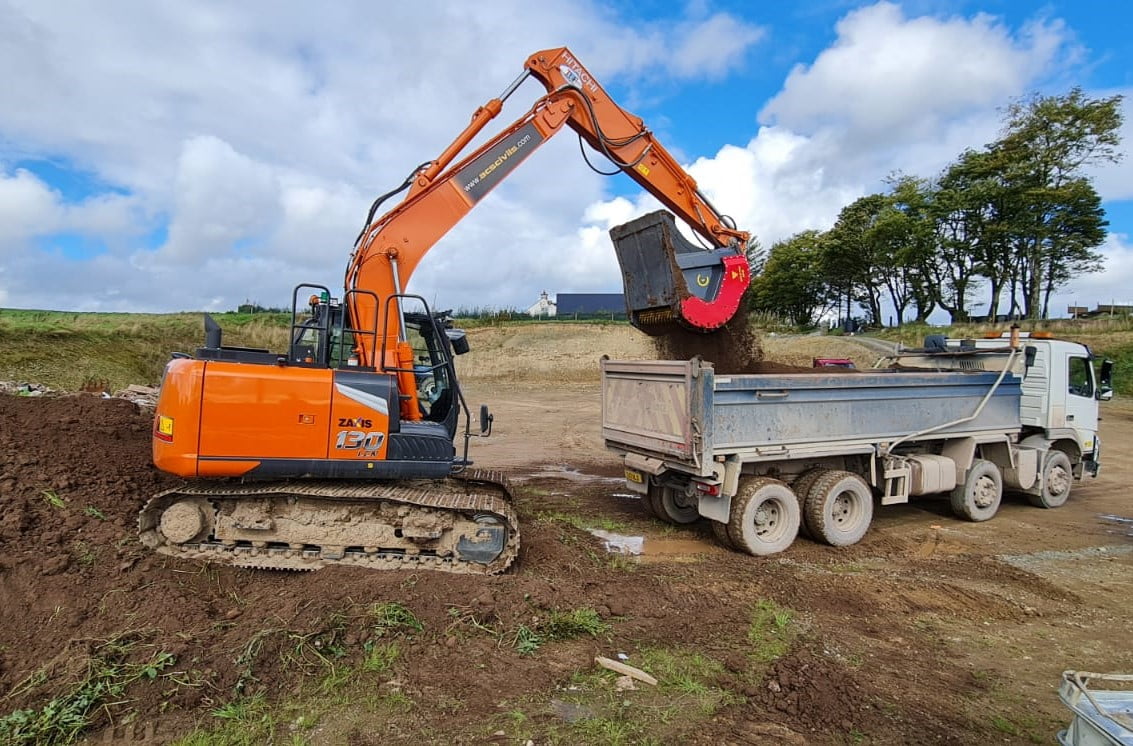

The ideal screening bucket for the ever popular 13 tonne excavator. Boasts high production in medium to larger scale contracts.
STANDARD FEATURES
- Integrated motors with 2 stage hydraulic protection
- Sealed heavy duty oil bath
- Single point greasing system
- Unique arc design with head deflection
- Side wear protection
- Feed hoses and headstock
- Tapered front and dropped floor
- Extended bucket floor
DURABILITY
- Oil Immersed Chains And Bearings
- Fully Welded, Heavy Duty Construction
- Encased Hydraulics and Components
- Polyurethane Star Rotors, Mounted On Solid Steel Shafts
- Hardox In High Wear Areas
- Side Impact Protection
- Double Support Headplate
Integrated Motors with 2 Stage Hydraulic Protection
High torque motors with a 40mm output shaft, provides optimum speed and power for a variety of screening applications.
Cross line relief and motor bleed as standard in our full range, ensures a longer life for you product.

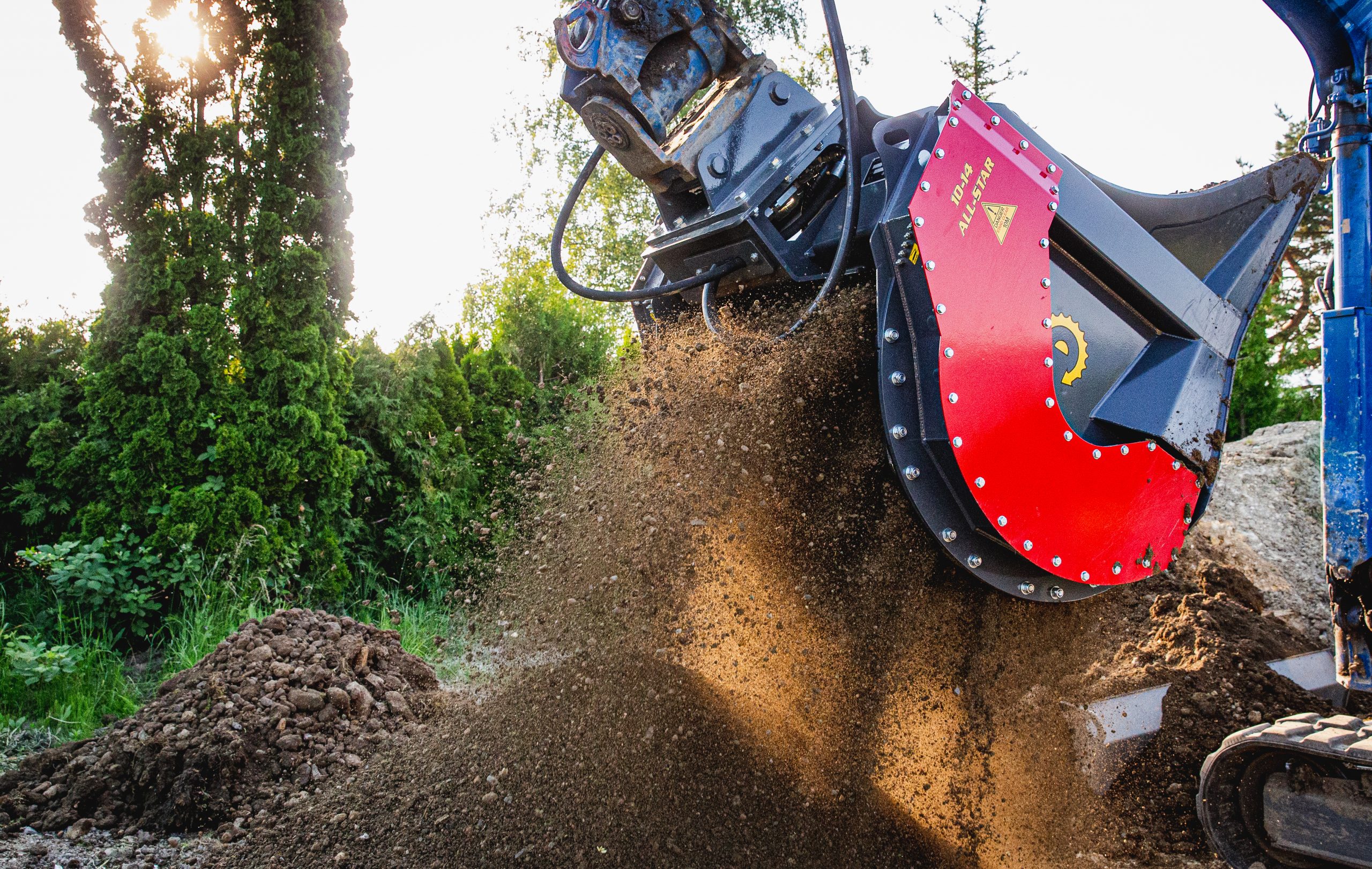

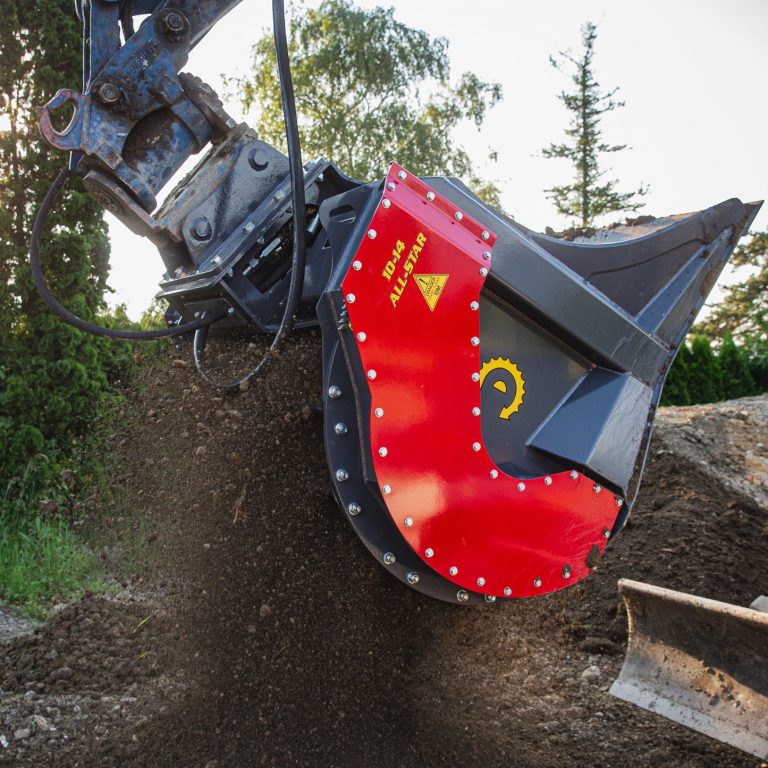

Unique Arc Design with Head Deflection
Uniquely innovative arc designed shafts, enabling continuous, uninterrupted flow of material.
This design alongside our head deflection plate results in faster more efficient screening.

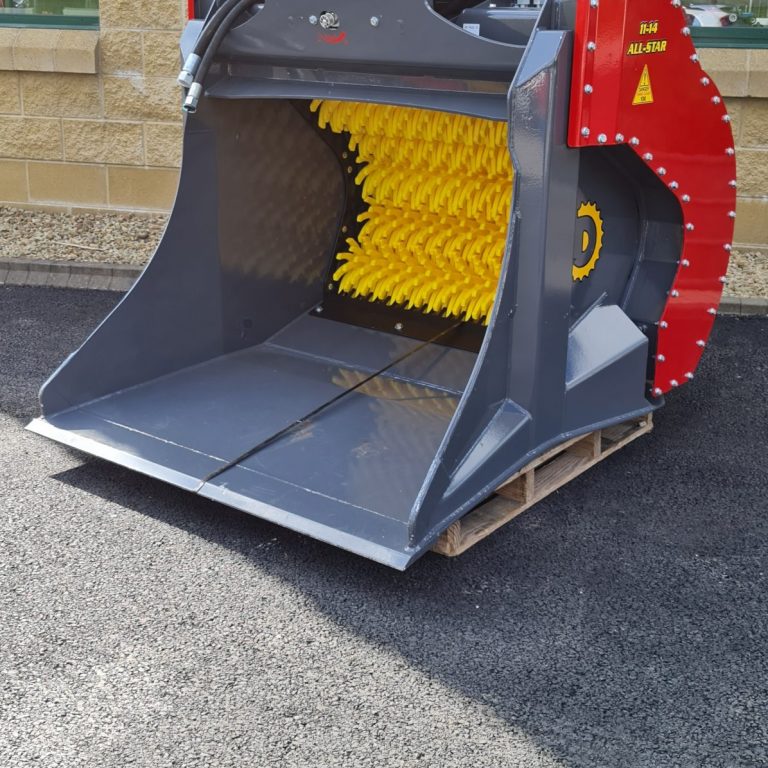

Tapered Front & Dropped Floor
The mouth of the bucket has been specifically developed for controlled material flow, increased optimum tip out angle, to prevent the base and shafts from damage when crowning, and to prevent over loading of the machines hydraulic systems.
Sealed Heavy Duty Oil Baths
Prevents the ingress of dust water and other contaminants.
This eliminates premature wear of the drive chain.
