Excavator Buckets

All Star Screening Buckets

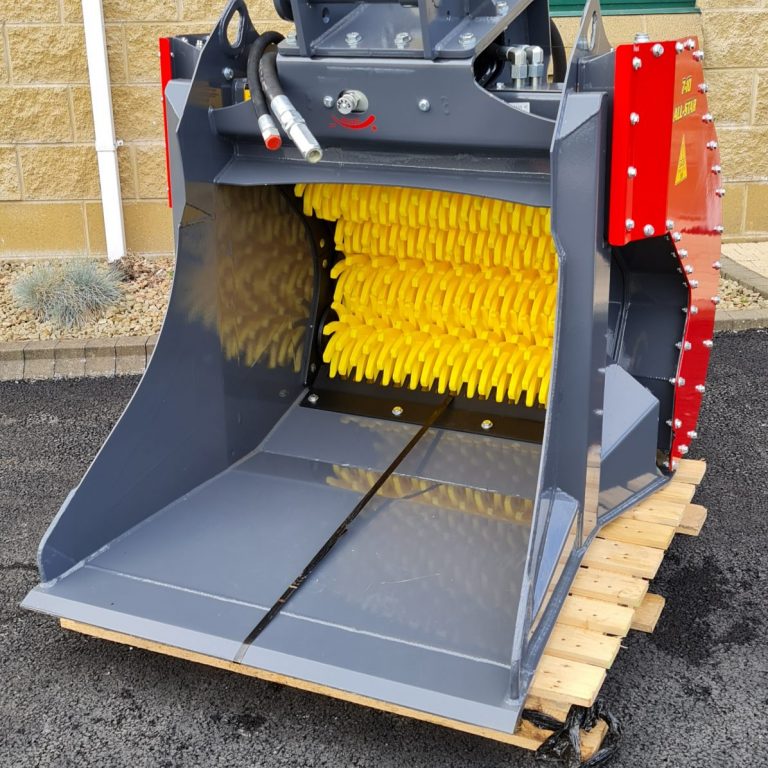

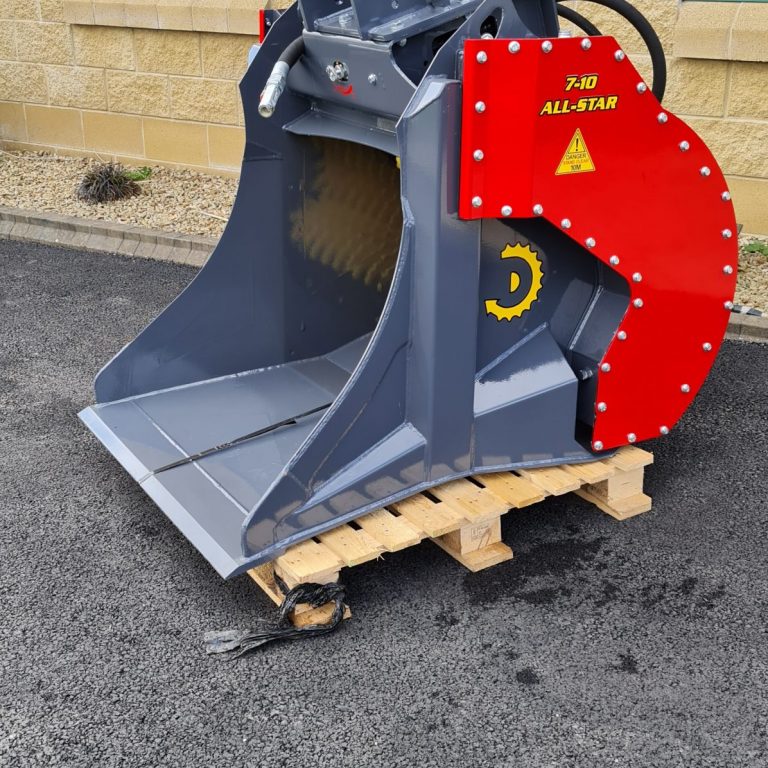

7-10 All-Star Excavator Bucket

7-10 Tonne Screening Bucket

To suit a 7-10 tonne Excavator

7-10 Tonne
Carrier Weight7-10 Tonne
Shafts4
Weight630kg
Hydraulic Req.50L/min 180 Bar
M³ Volume0.35m³
Output Capability30-35 TPH
Inside Width828mm
Opening Width1070mm
Make a Product EnquiryDownload PDF Brochure

7-10 All-Star Excavator Bucket

Suitable for 7-10 tonne excavators. Our most popular mid-range screening bucket, can easily hold its own in both small and large scale contracts.

STANDARD FEATURES

  • Integrated motors with 2 stage hydraulic protection
  • Sealed heavy duty oil bath
  • Single point greasing system
  • Unique arc design with head deflection
  • Side wear protection
  • Feed hoses and headstock
  • Tapered front and dropped floor
  • Extended bucket floor

DURABILITY

  • Oil Immersed Chains And Bearings
  • Fully Welded, Heavy Duty Construction
  • Encased Hydraulics and Components
  • Polyurethane Star Rotors, Mounted On Solid Steel Shafts
  • Hardox In High Wear Areas
  • Side Impact Protection
  • Double Support Headplate
All Star Screening Buckets
All Star Screening Buckets

Integrated Motors with 2 Stage Hydraulic Protection

High torque motors with a 40mm output shaft, provides optimum speed and power for a variety of screening applications. Cross line relief and motor bleed as standard in our full range, ensures a longer life for you product.

Unique Arc Design with Head Deflection

Uniquely innovative arc designed shafts, enabling continuous, uninterrupted flow of material. This design alongside our head deflection plate results in faster more efficient screening.

Tapered Front & Dropped Floor

The mouth of the bucket has been specifically developed for controlled material flow, increased optimum tip out angle, to prevent the base and shafts from damage when crowning, and to prevent over loading of the machines hydraulic systems.

Sealed Heavy Duty Oil Baths

Prevents the ingress of dust water and other contaminants. This eliminates premature wear of the drive chain.
